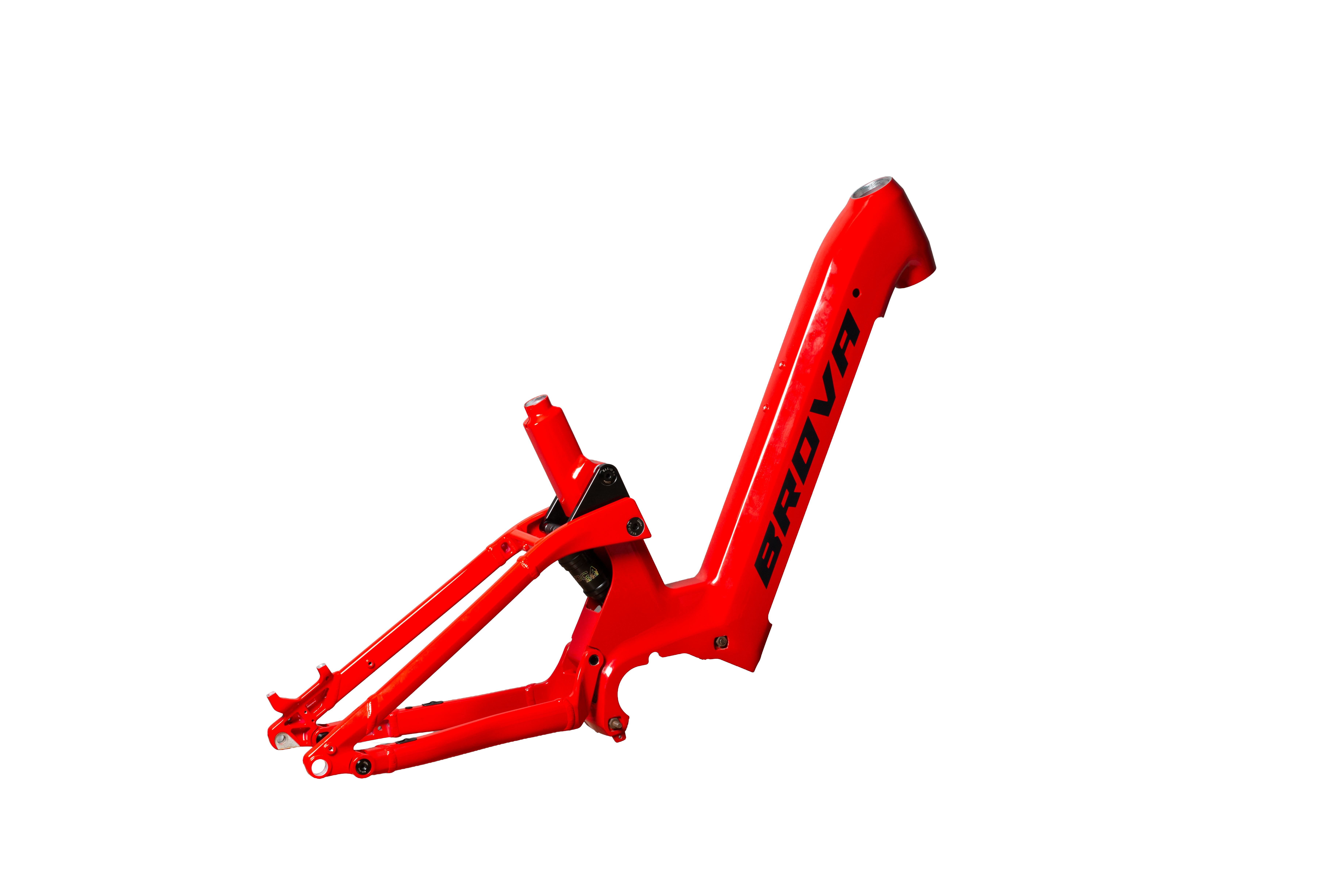

BROVA BRHW0094 | Full Suspension E-MTB Frame
Engineered for efficient trail performance, the BROVA BRHW0094 is a premium full suspension E-MTB frame constructed from high-strength 6061 aluminum alloy.- 110mm Travel Suspension System: Equipped with a 165*38 shock, delivering balanced shock absorption and efficient power transfer for cross-country and trail riding.
- Seamless BOSCH Integration: Precision-engineered to perfectly integrate the BOSCH G5 (BDU38YY) mid-drive motor and BOSCH PT800W battery, with clean internal routing for a sleek, durable build.
- Dual Wheel Compatibility: Designed for both 29" x 2.6" and 27.5" x 2.8" tire platforms, adaptable to diverse trail riding styles.
- UDH Derailleur Hanger: Equipped with a universal UDH hanger for maximum drivetrain compatibility and easy maintenance.
- Industry-Standard Build: Features ZS56/ZS56 headset, 31.6mm seat post, 148mm×12 E-thru rear hub, and Post Mount 180mm brake interface, ready for professional builds.
- Optimized Frame Geometry: Redesigned trail geometry for agile handling, precise cornering, and unmatched power transfer, built to withstand the torque of high-performance E-MTB systems.
-
BRHW0094
-
BROVA
-
6061
-
16.5"
-
ZS56 / ZS56
-
Φ31.6
-
BOSCH G5 BDU38YY
-
BOSCH PT800W
-
148mmx12 E-thru system
-
Post Mount 180mm
-
29"x2.6" 27.5"x2.8"
-
110mm
-
165*38
-
upper 40mm/Φ8, lower 24mm/Φ8

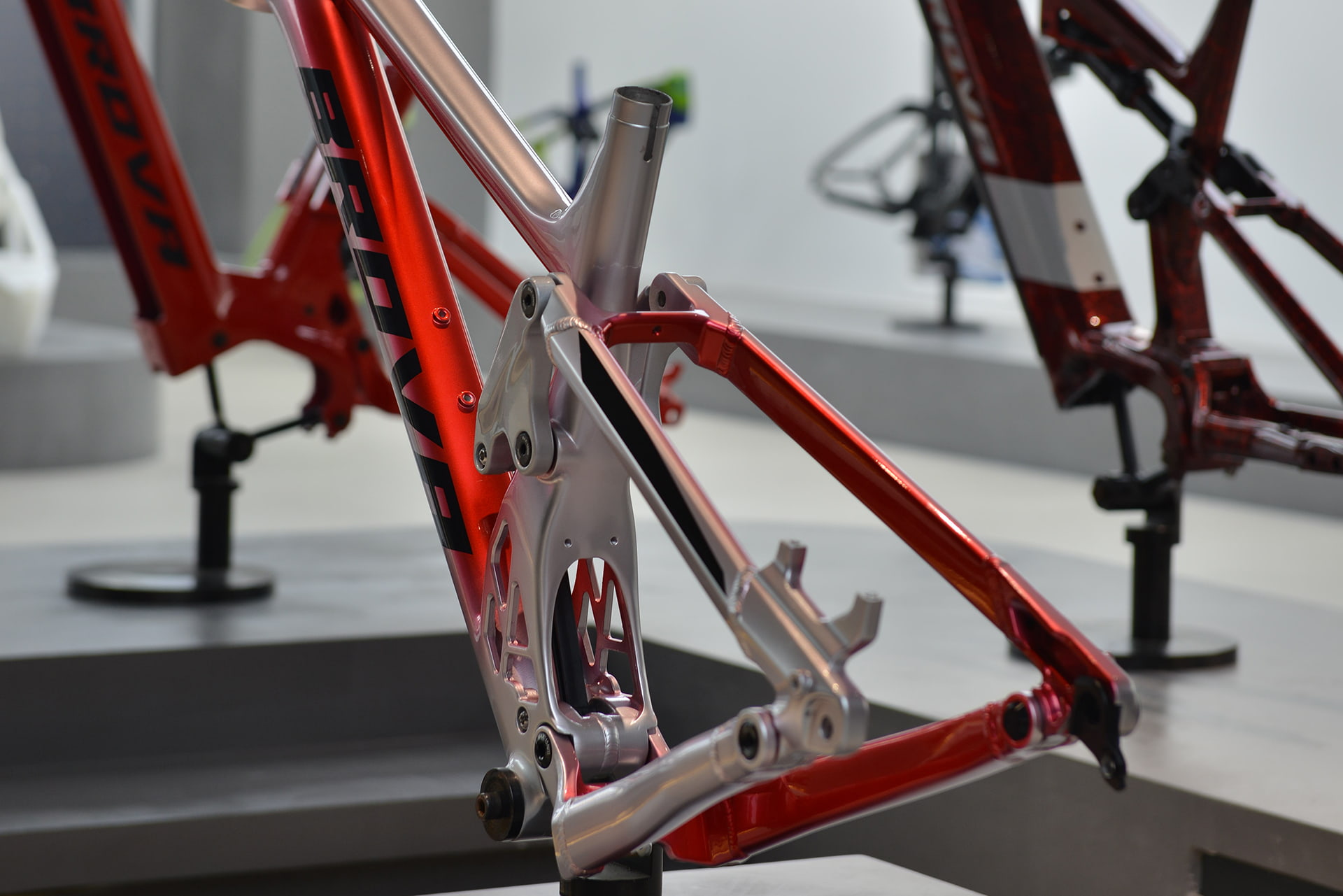

Full Suspension e-MTB Aluminum Frame
Engineered for high-end eBike brands, our full suspension aluminum e-MTB frame combines advanced kinematics design, optimized geometry, and robust structural integrity. Designed specifically for mid-drive motor systems, this frame delivers exceptional riding performance across enduro and trail applications.
We support OEM and ODM projects for premium eBike brands, from concept development to mass production.
Explore Engineering
Key Features-Why BROVA Engineering Stands Apart
Advanced Suspension Kinematics
Precisely engineered linkage system ensures efficient power transfer, improved traction, and superior shock absorption on technical terrain.
Optimized Geometry for e-MTB
Balanced reach, head angle, and chainstay length provide stability at high speed while maintaining agile handling.
High-Strength Aluminum Construction
Manufactured using premium 6061 aluminum alloy, offering an excellent strength-to-weight ratio.
Mid-Drive Motor Integration
Compatible with leading motor systems such as Bosch, Shimano, Avinox and Bafang.
Internal Cable Routing
Clean design with improved protection and reduced maintenance.
Battery Integration Options
Supports both internal and semi-integrated battery solutions.

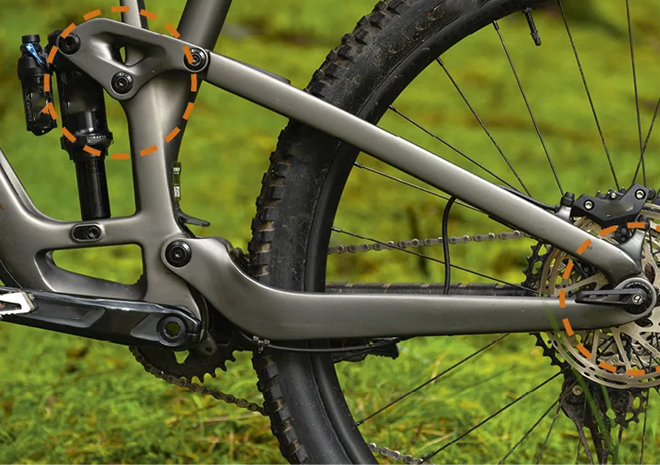

Suspension System Design
Our suspension platform is developed to optimize leverage ratio and anti-squat characteristics, ensuring efficient pedaling and improved downhill control.

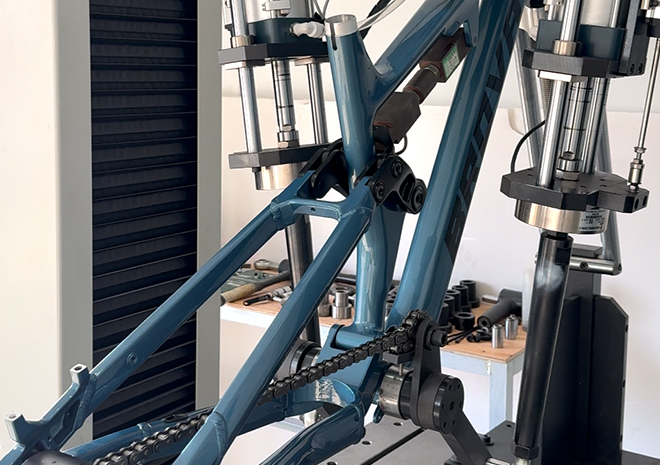

Fatigue Resistance
The frame is engineered to withstand long-term stress cycles, making it suitable for aggressive off-road riding conditions.

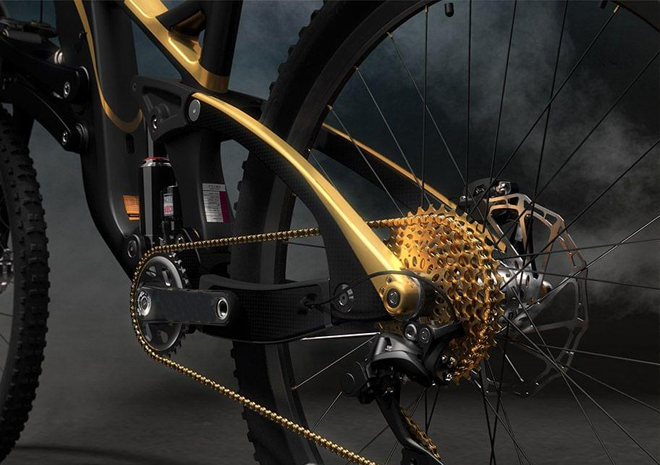

Structural Reinforcement
Critical stress areas such as the motor mount and pivot points are reinforced through advanced welding and CNC machining processes.

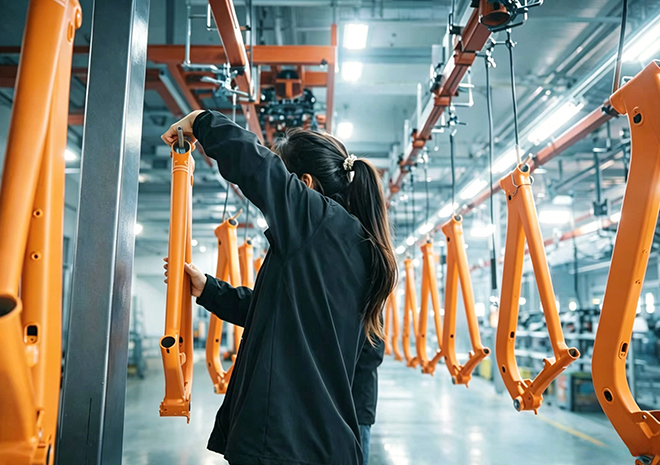

Manufacturing Precision
All frames are produced under strict quality control procedures, ensuring consistent alignment and dimensional accuracy.
| Size | ST | TT | HT | CA | SA | FR | OF | BB | RC |
| M | 420 | 602 | 145 | 67 | 71 | 532 | 51 | 20 | 467 |
Manufacturing & Quality

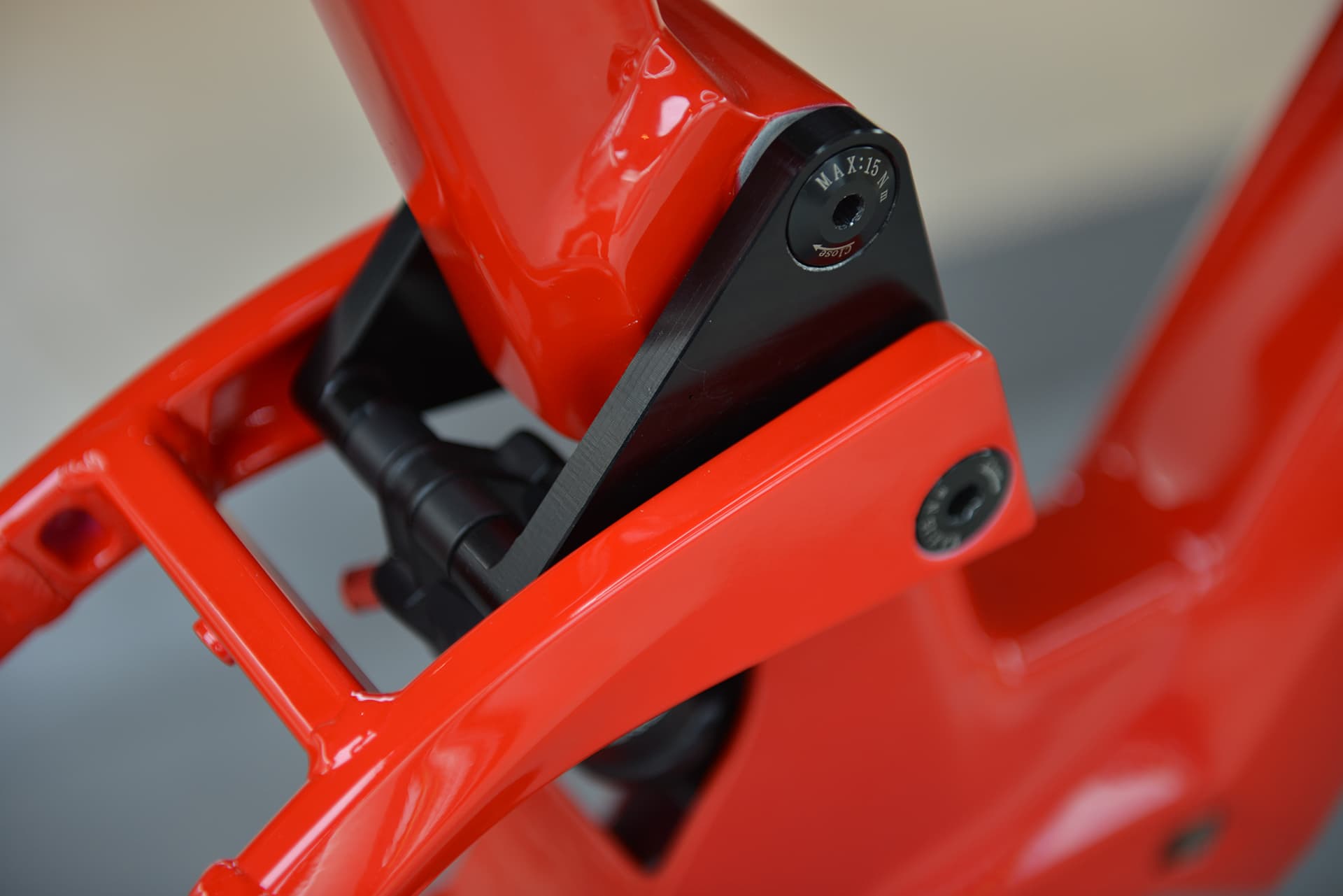

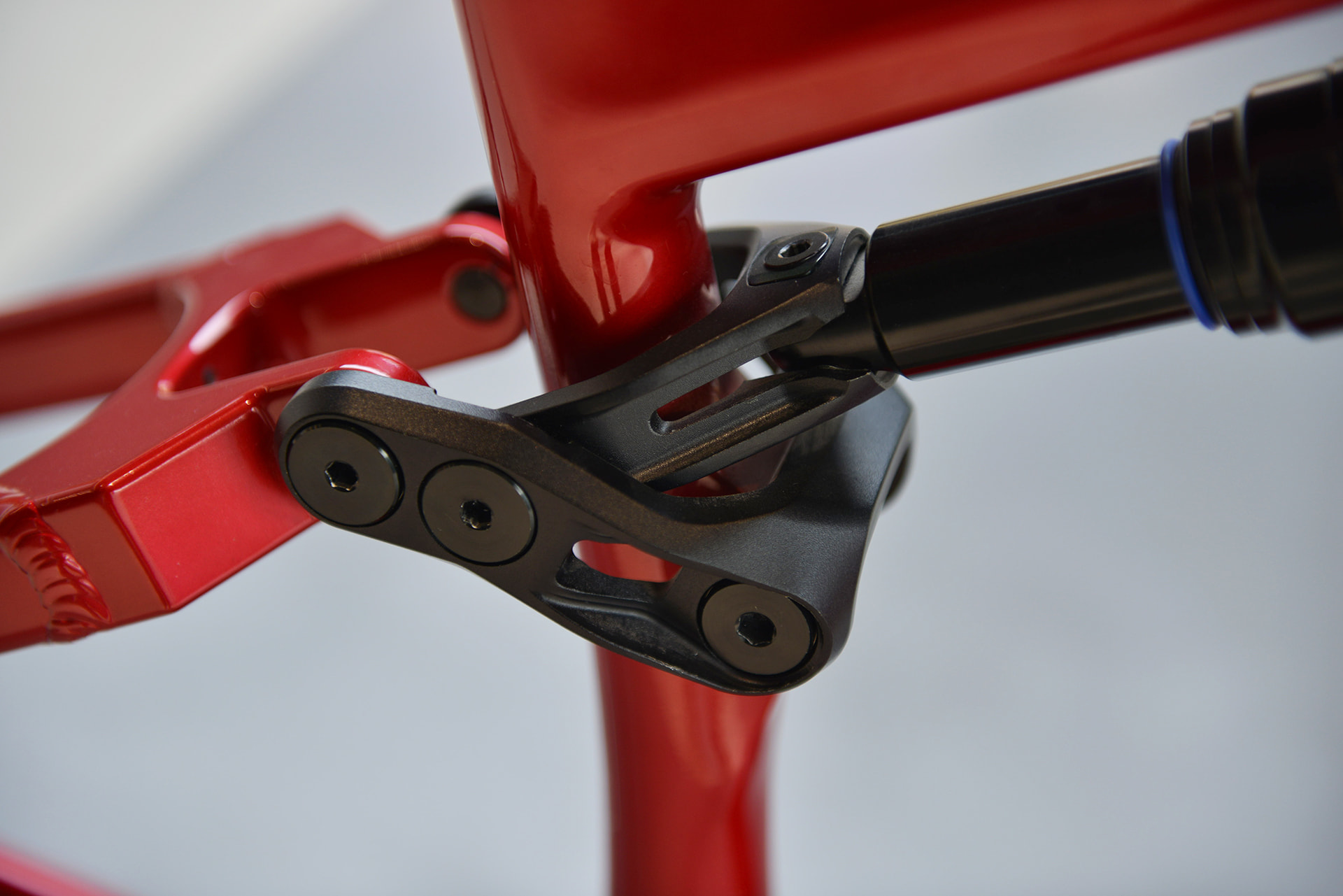

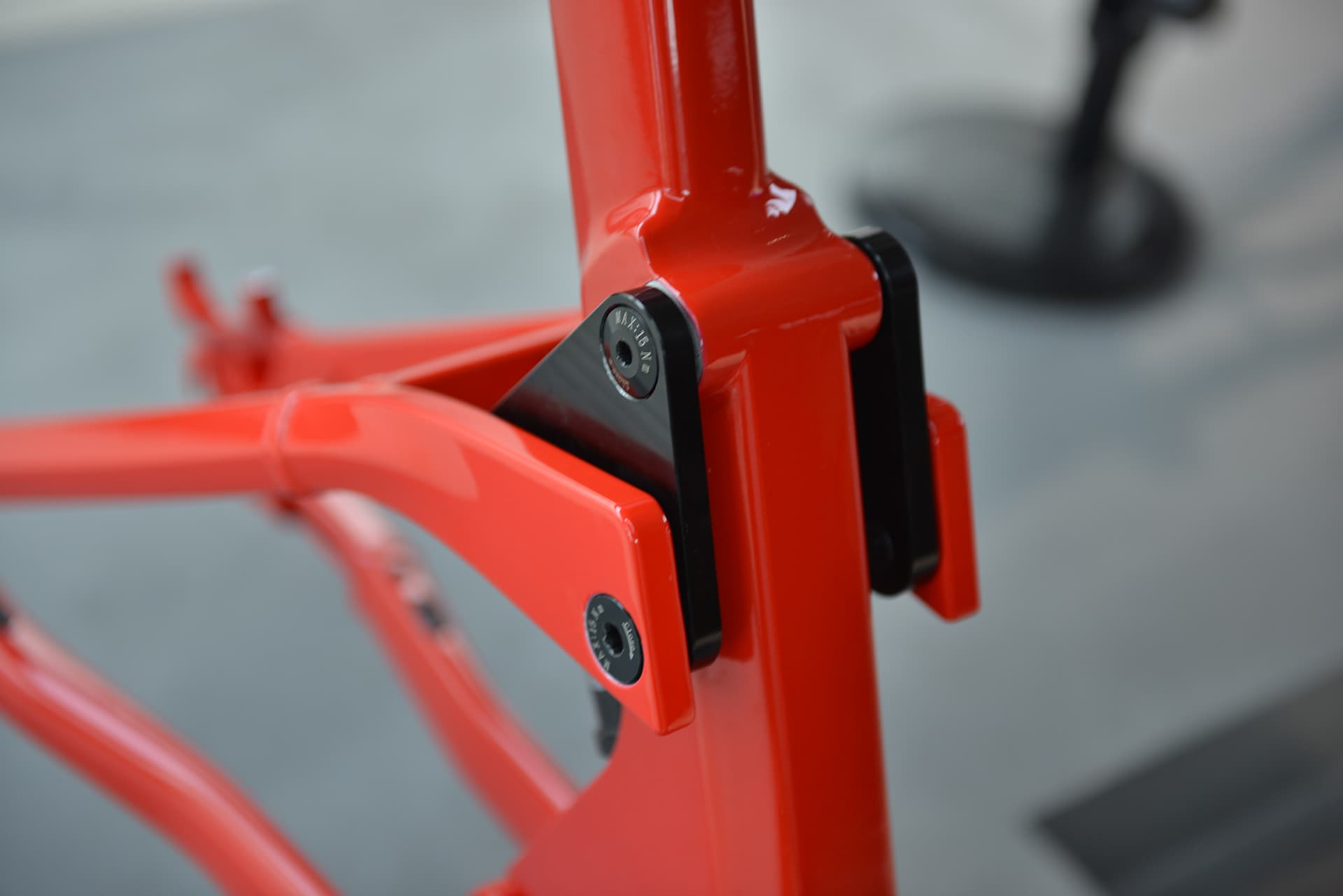

ODM Project Case
Project: Full Suspension e-MTB Frame for EU Brand
An European brand partnered with BROVA to develop a full suspension eMTB platform for aggressive trail riding.
Our team delivered:
Custom geometry development
Suspension tuning & structural optimization
Full prototype validation
The project was completed within 4-6 months and successfully passed EU testing standards before entering mass production, and received positive feedback from our partner and the market.
W0094 E-MTB Suspension AM FAQ
Yes, we provide full ODM service including geometry design, structure development, and prototype testing.
